App bars: top

The top app bar displays information and actions relating to the current screen.


Usage

The top app bar provides content and actions related to the current screen. It’s used for branding, screen titles, navigation, and actions.

It can transform into a contextual action bar.

Principles

The top app bar should be persistent, guiding, and consistent.

Read More

Persistent

Top app bars appear at the top of each screen in an app, and can disappear upon scroll.

Guiding

Top app bars provide a reliable way to guide users through an app.

Consistent

Top app bars have a consistent position and content to increase familiarity.

Types

There are regular top app bars and contextual action bars.

Read More

Regular

A regular top app bar

Contextual action bar

Contextual action bars provide actions for selected items. A top app bar can transform into a contextual action bar, remaining active until an action is taken or it is dismissed.


Anatomy

The recommended placement of elements in a top app bar for left-to-right languages is:

  • Place navigation on the far left
  • Place any titles to the right of navigation
  • Place contextual actions to the right of navigation
  • Place an overflow menu (if used) to the far right

For right-to-left languages, placement positions should be flipped.

  1. Container

  2. Navigation icon (optional)

  3. Title (optional)

  4. Action items (optional)

  5. Overflow menu (optional)

Bar

The bar holds the content of the top app bar. A variety of bar heights are available: Prominent top app bars can be used for...

Read More

The bar holds the content of the top app bar. A variety of bar heights are available:

  • Regular
  • Prominent
  • Dense (desktop only)
  • Prominent dense (desktop only)

Prominent

Prominent top app bars can be used for longer titles, to house imagery, or to provide a stronger presence to the top app bar.

  1. Regular top app bar on mobile
  2. Prominent top app bar on mobile

Dense (desktop only)

The top app bar may be condensed on desktop to accommodate denser layouts.

  1. Regular top app bar on desktop
  2. Dense top app bar on desktop

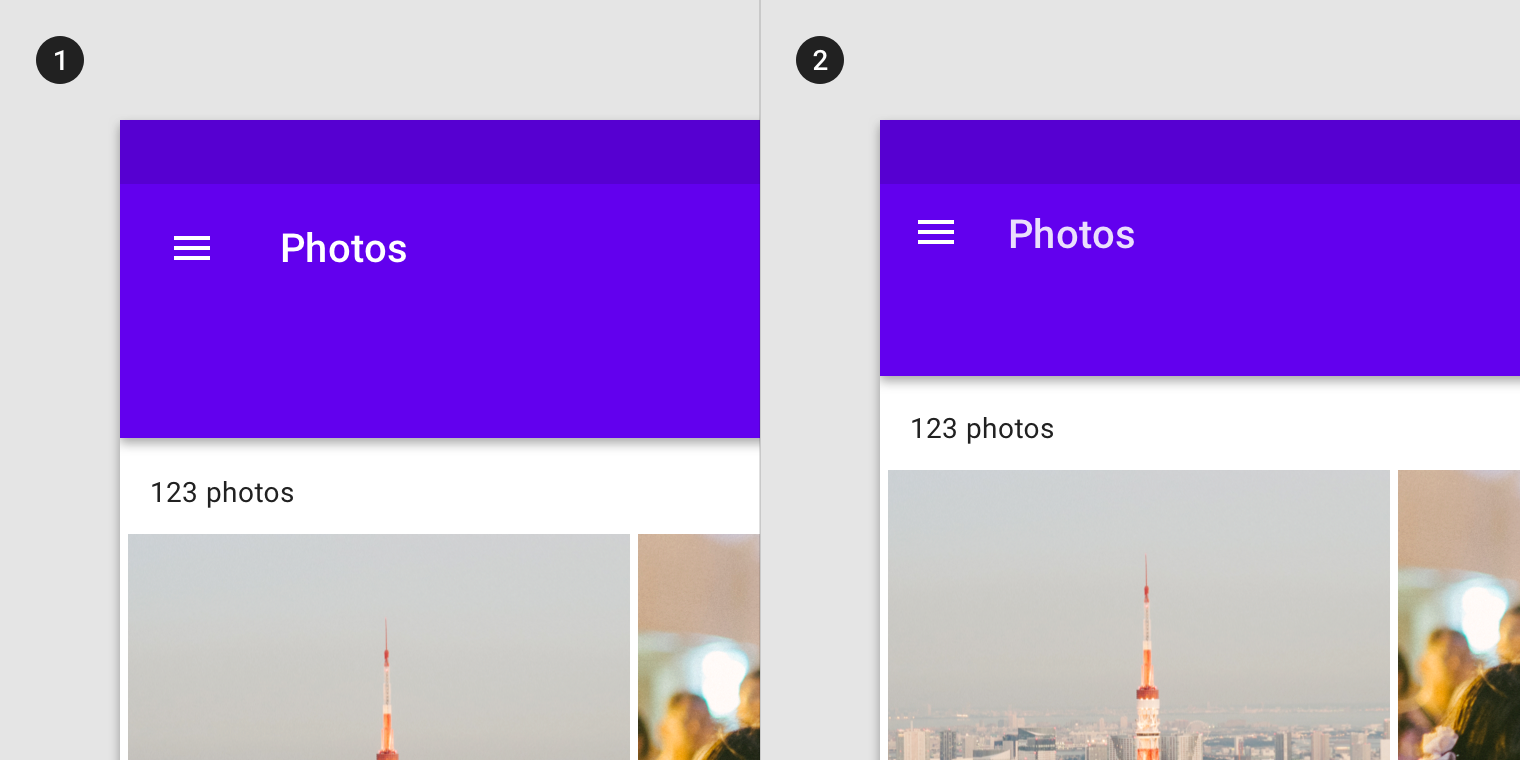

Prominent dense

Prominent top app bars on desktop can have a dense state to accommodate denser layouts.

  1. Prominent top app bar on desktop
  2. Prominent dense top app bar on desktop

Images in bars

Bars can contain imagery. Prominent top app bars are recommended for image use because they provide more space.

Don’t use imagery that makes top app bar text and icons illegible.

A prominent top app bar with imagery

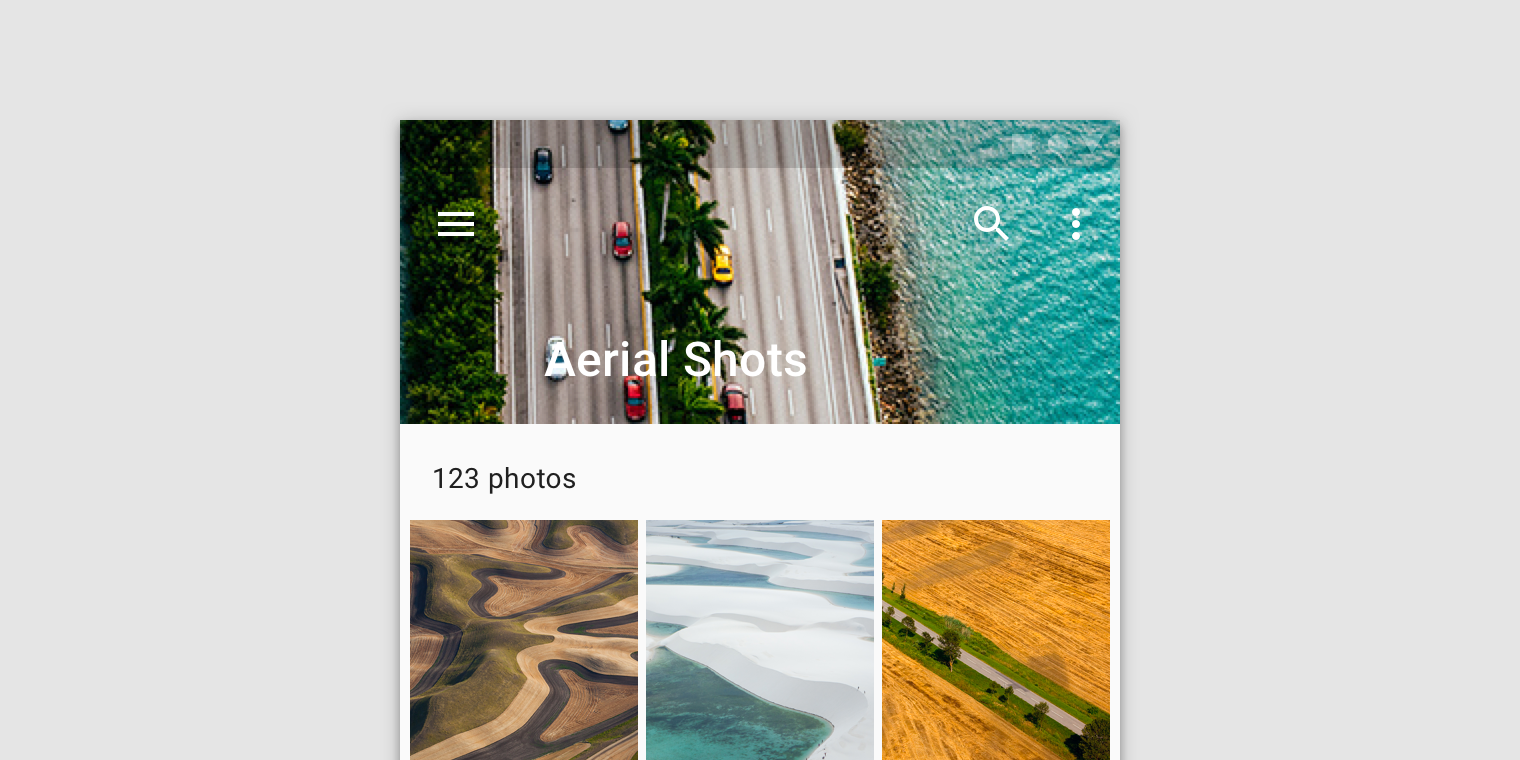

Don’t.

Don’t place imagery in a bar that makes the top app bar’s text and icons illegible.

Navigation icon (optional)

A navigation icon is optional. When it appears in an app bar, it’s aligned on the left of the bar. It can take any of...

Read More

A navigation icon is optional. When it appears in an app bar, it’s aligned on the left of the bar.

It can take any of the following forms:

  • A menu icon, which opens a navigation drawer
  • An up arrow, which navigating up an app’s hierarchy
  • A back arrow, which returns to the previous screen

Title (optional)

The app bar title can be used to describe: By default, titles are left aligned on desktop. The default position of titles on mobile and...

Read More

The app bar title can be used to describe:

  • The screen a user is currently on
  • The section the user is currently in
  • The app being used

By default, titles are left aligned on desktop. The default position of titles on mobile and tablet depends on the platform. More information on this is available in cross-platform adaptation.

Do.

If title text is long, use a prominent app bar and wrap the title to two lines.

Don’t.

Don’t wrap text in a regular top app bar.

Don’t.

Don’t truncate text, hiding the full title may cause misunderstanding.

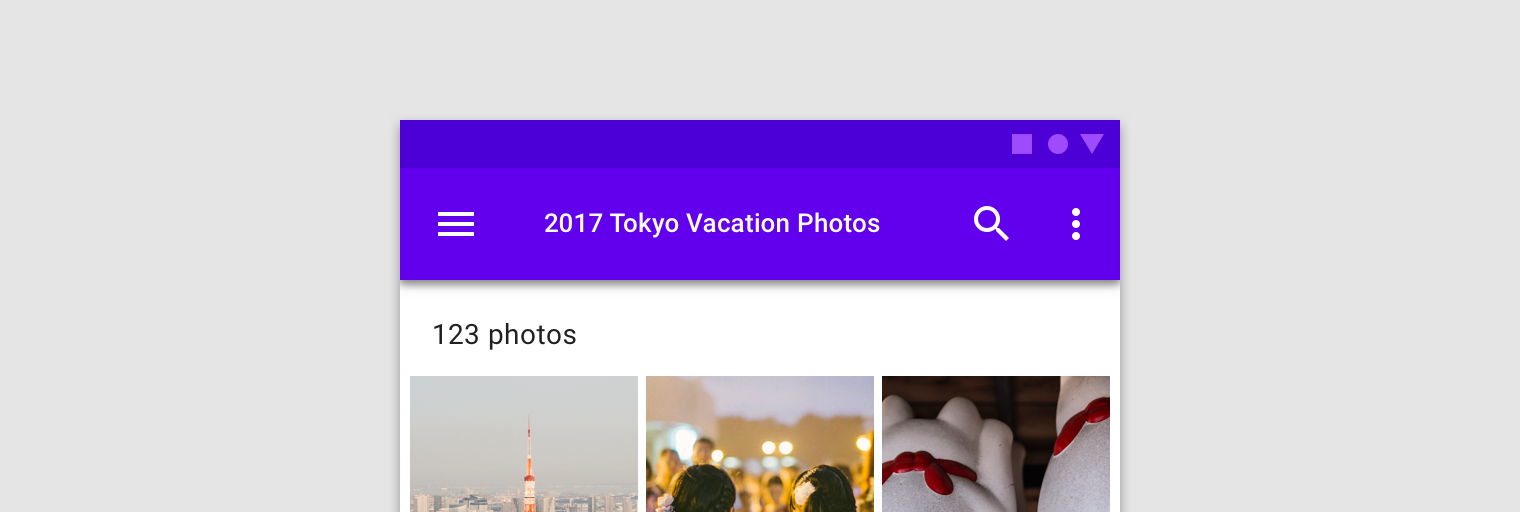

Don’t.

Don’t shrink text to fit on a single line.

Action items and overflow menu (optional)

App actions are placed on the right side of an app bar, either as icons or in an overflow menu. Overflow menus differ across mobile...

Read More

App actions are placed on the right side of an app bar, either as icons or in an overflow menu. Overflow menus differ across mobile platforms. For more guidance refer to cross-platform adaptation.

Icon placement

Place most-used actions on the left, progressing towards the least-used actions on the far right. Any remaining actions that don’t fit on the app bar can go into an overflow menu.

Actions move into and out of the overflow menu as the app bar width changes, such as if a device is rotated from landscape to portrait orientation. More guidance on this is available in top app bar behavior.

Do.

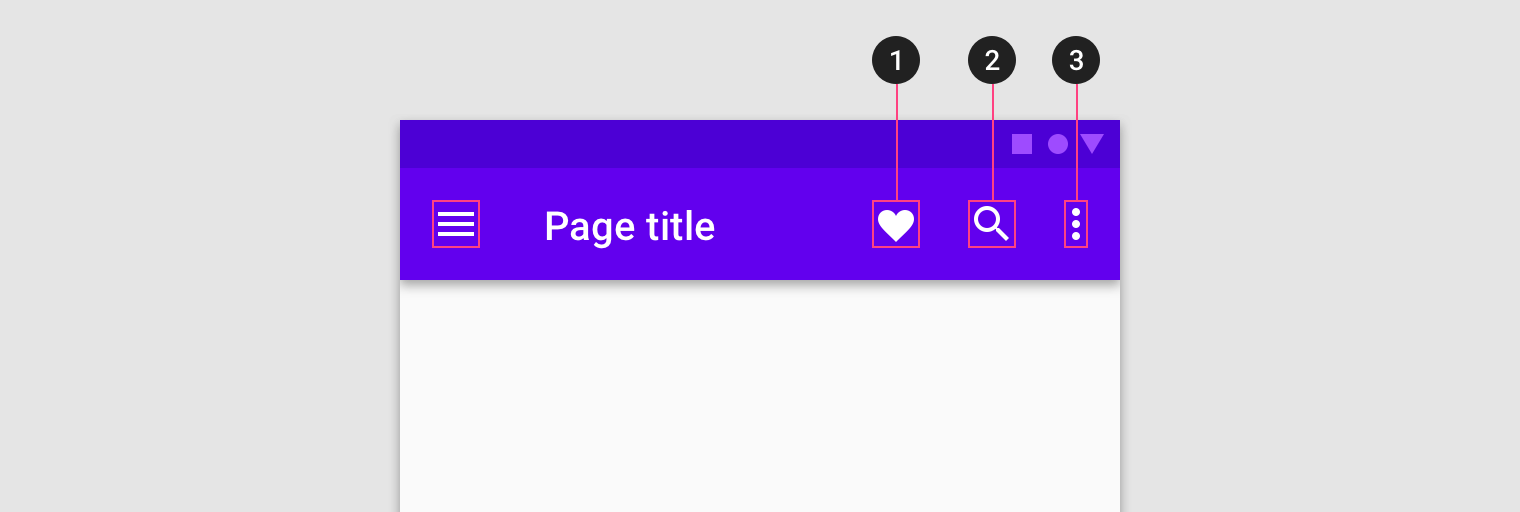

Order action items by putting the most-used action (1) on the far left, second most used action (2) to it’s right, and so on. Any remaining or secondary actions should be placed in an overflow menu (3).


Behavior

Scrolling

Upon scrolling, the top app bar can remain in place, or transform in the following ways: When the top app bar scrolls, its elevation above...

Read More

Upon scrolling, the top app bar can remain in place, or transform in the following ways:

  • Scrolling upward hides the top app bar
  • Scrolling downward reveals the top app bar

When the top app bar scrolls, its elevation above other elements becomes apparent.

The top app bar disappears upon scrolling up, and appears upon scrolling down.

Top app bars can be positioned at the same elevation as content. Upon scroll, they increase elevation and let content scroll behind them.

When scrolling up, prominent top app bars using imagery can transform into normal top app bars. They should not return to prominent mode until the user scrolls back to the top of the page.

Nesting actions

When a screen is resized, the top app bar resizes with it. Actions are consolidated into the overflow menu. The actions move to the overflow...

Read More

When a screen is resized, the top app bar resizes with it. Actions are consolidated into the overflow menu.

Action positioning

The actions move to the overflow menu from right to left, making the most-used action the last to be moved to the overflow menu.

As a top app bar is resized, actions move to the overflow menu from right to left.

Scaled down to 62.5%


Contextual action bar

Usage

A top app bar can transform into a contextual action bar to provide contextual actions to selected items. For example, upon user selection of photos...

Read More

A top app bar can transform into a contextual action bar to provide contextual actions to selected items. For example, upon user selection of photos from a gallery, the top app bar transforms to a contextual app bar with actions related to the selected photos.

When a top app bar transforms into a contextual action bar, the following changes occur:

  • The bar color changes
  • Navigation icon is replaced with a close icon
  • Top app bar title text converts to contextual action bar text
  • Top app bar actions are replaced with contextual actions

Upon closing, the contextual action bar transforms back into a top app bar.

Top app bar transforming into a contextual action bar

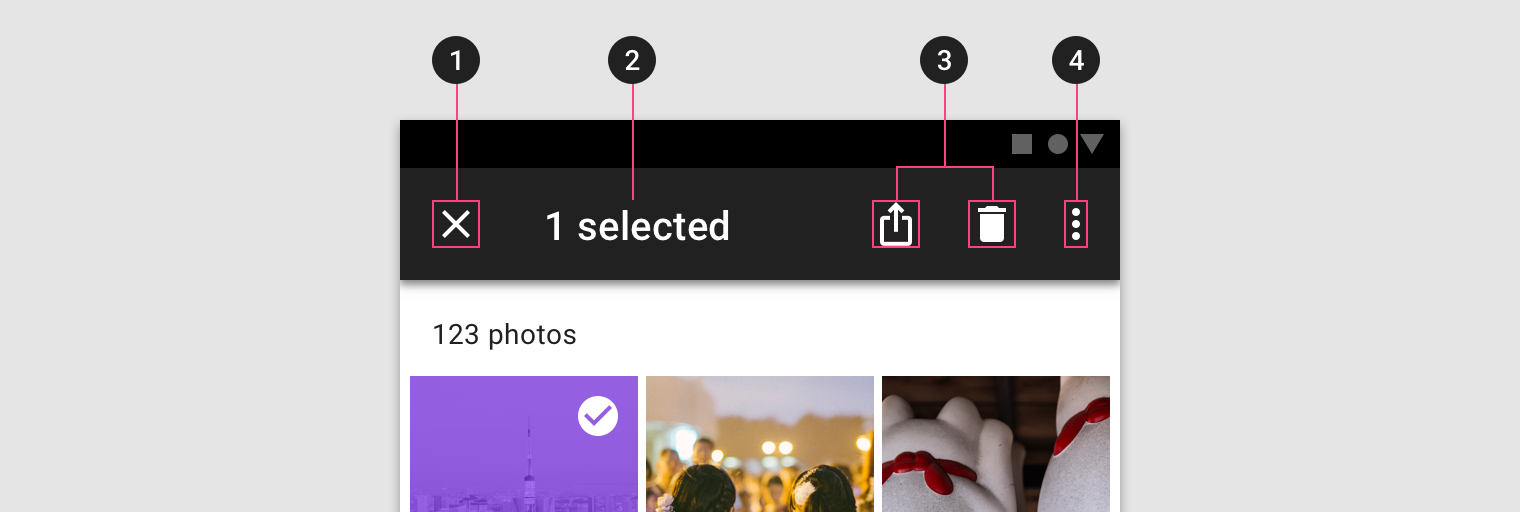

Anatomy

When a top app bar transforms into a contextual action bar, the bar should change color to indicate a change of state.

Read More
  1. Container

  2. Close button (instead of a navigation icon)

  3. Contextual title

  4. Contextual actions

  5. Overflow menu (optional)

Bar

When a top app bar transforms into a contextual action bar, the bar should change color to indicate a change of state.


Theming

Fortnightly Material Theme

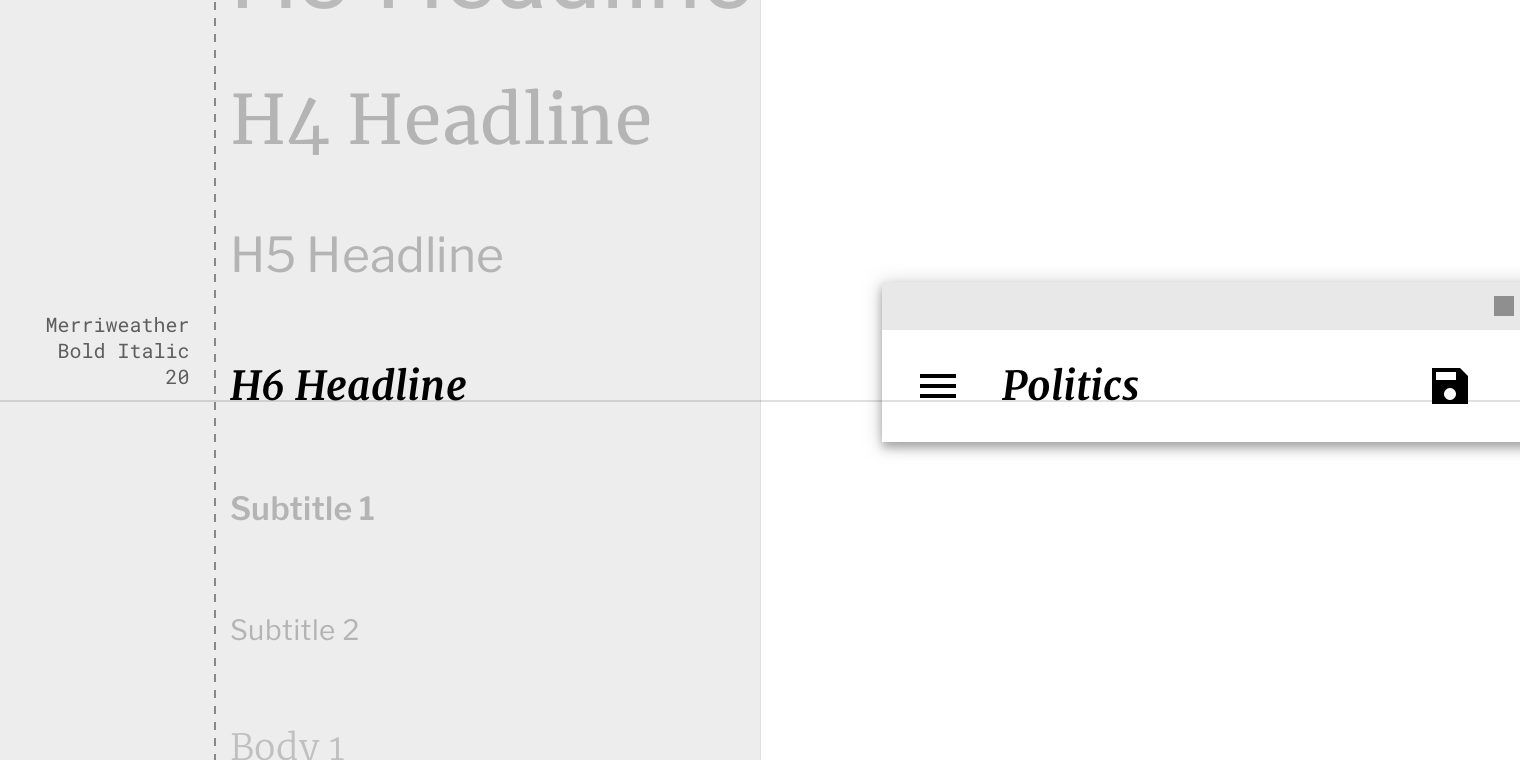

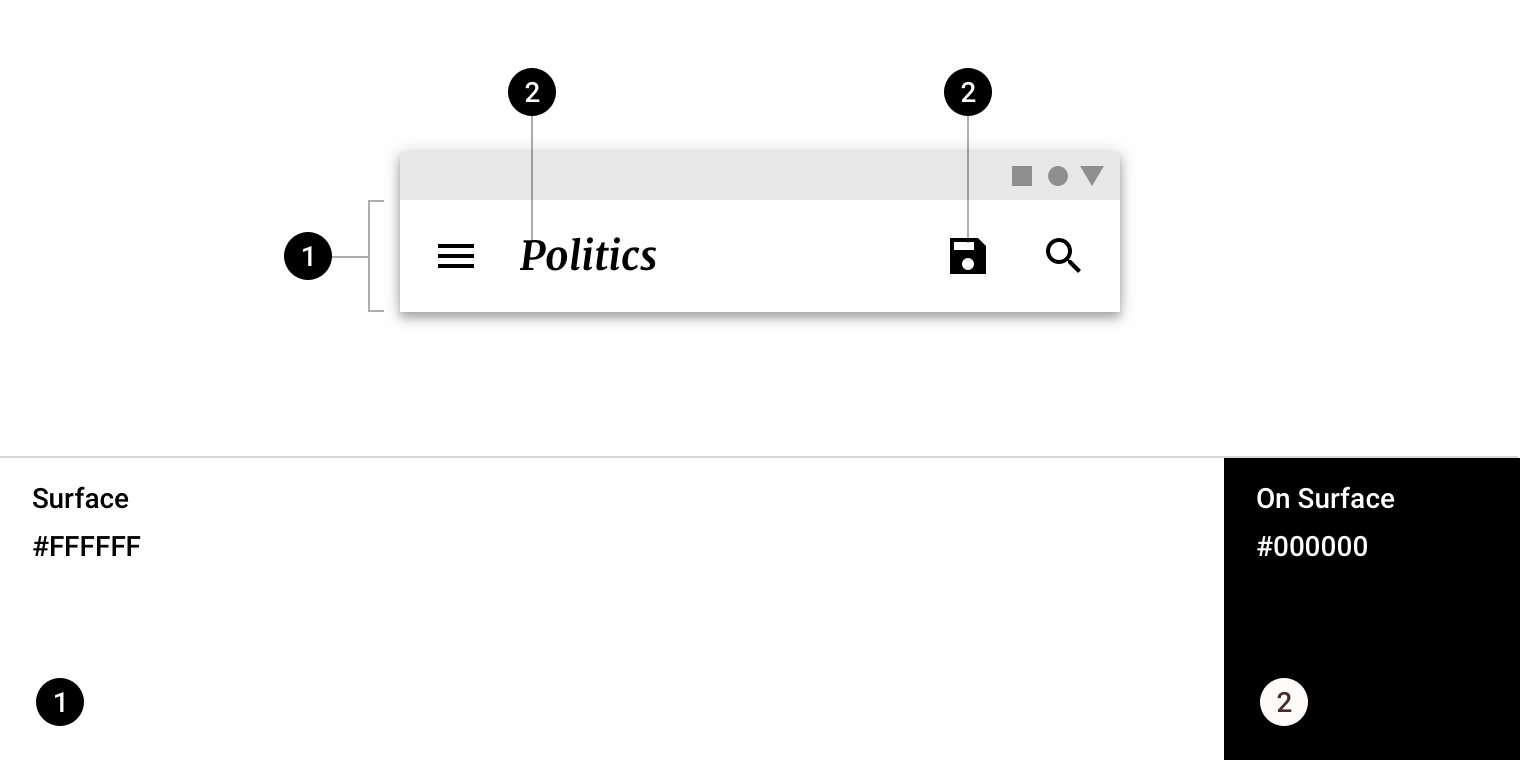

This news app’s top app bar has been customized using Material Theming. Areas of customization include color and typography. Fortnightly is a news app that...

Read More

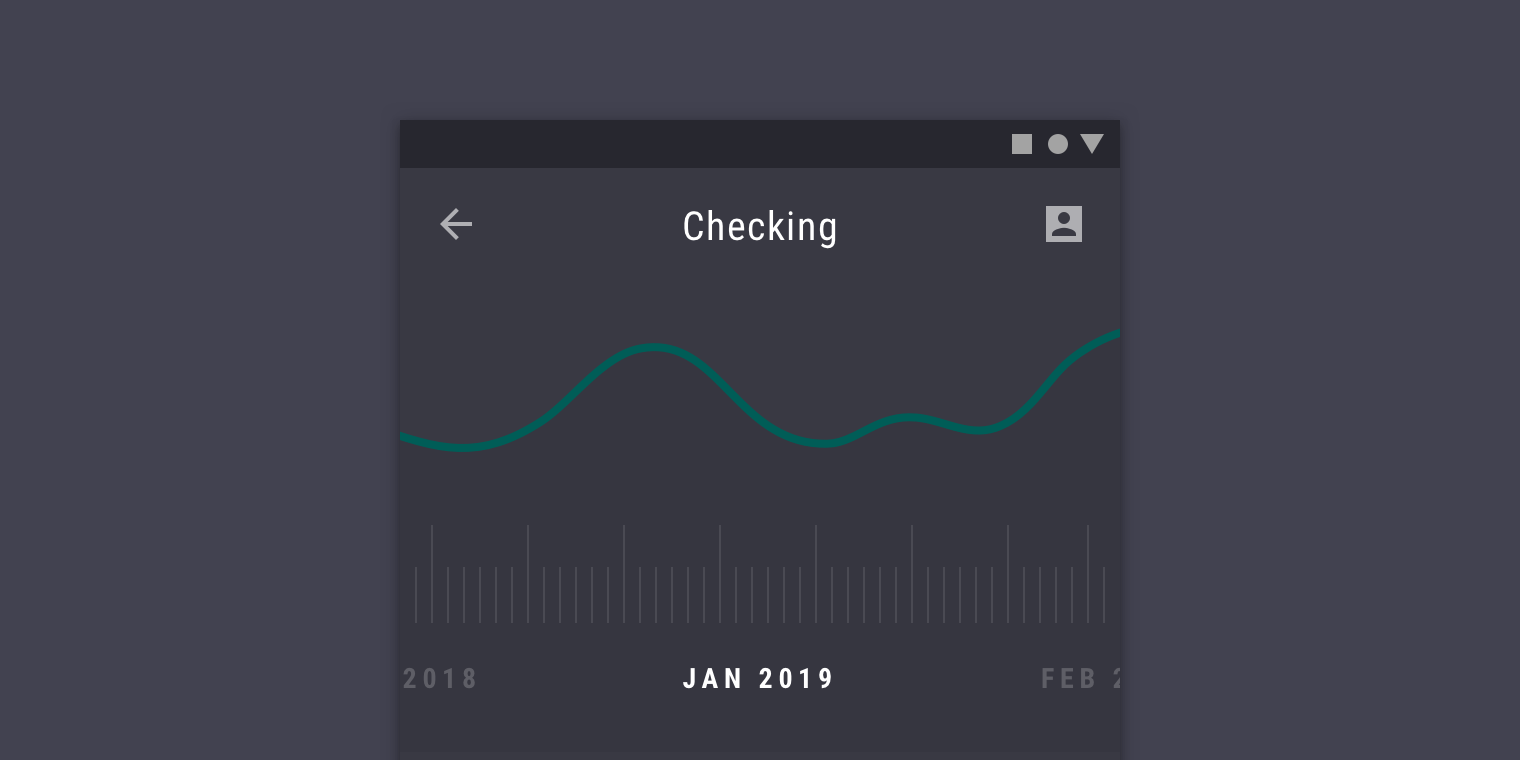

Rally Material Theme

This financial app’s top app bar has been customized using Material Theming. Areas of customization include color and typography. Rally is a personal finance app...

Read More

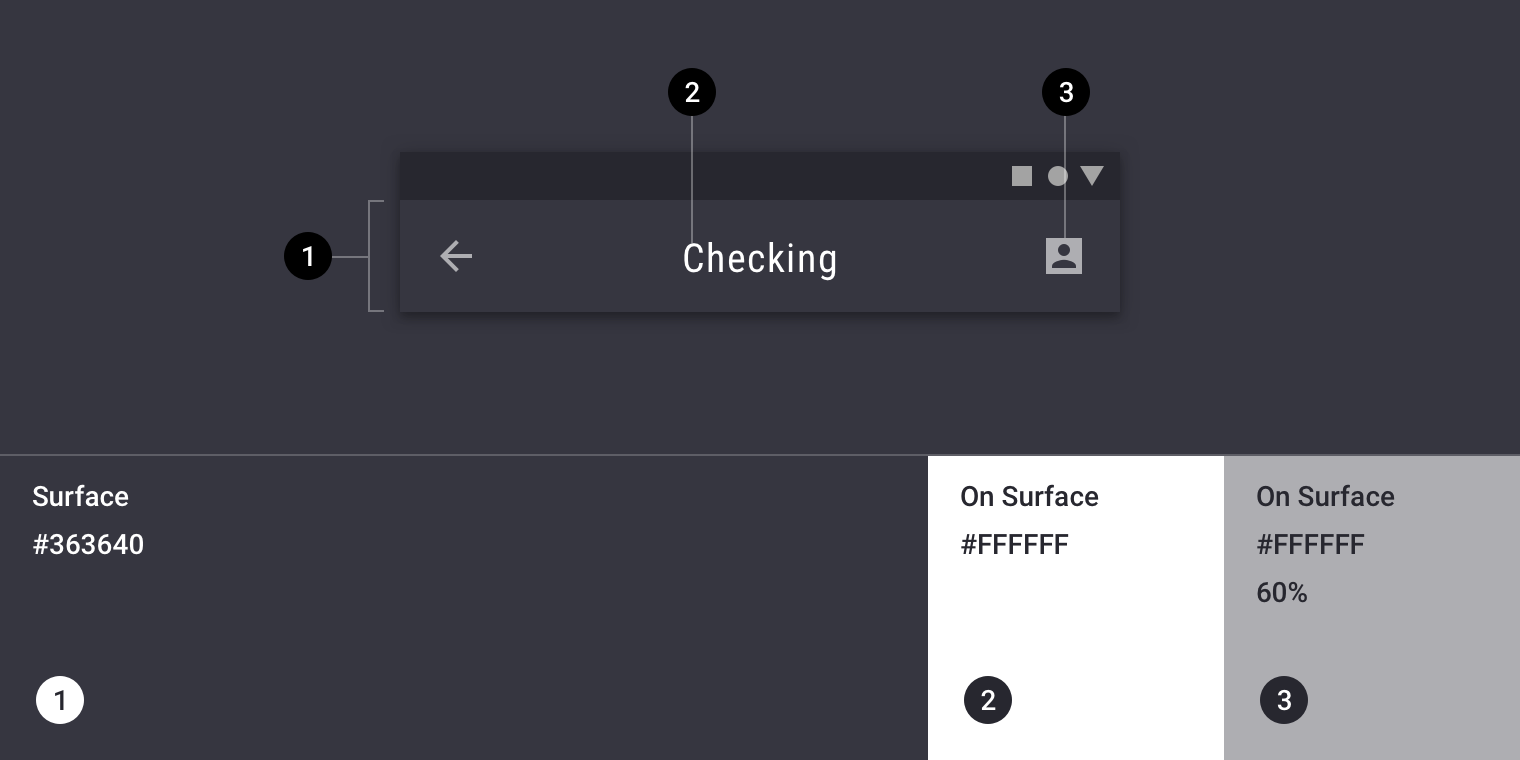

This financial app’s top app bar has been customized using Material Theming. Areas of customization include color and typography.

Rally’s customized bottom app bar

Color

Element

Category

Attribute

Value

Container

Surface

Color

Opacity

#363640

100%

Text

On Surface

Color

Opacity

#FFFFFF

100%

Icons

On Surface

Color

Opacity

#FFFFFF

60%

Typography

Element

Category

Attribute

Value

Text

H6

Typeface

Font

Size

Case

Roboto Condensed

Regular

20

Title case

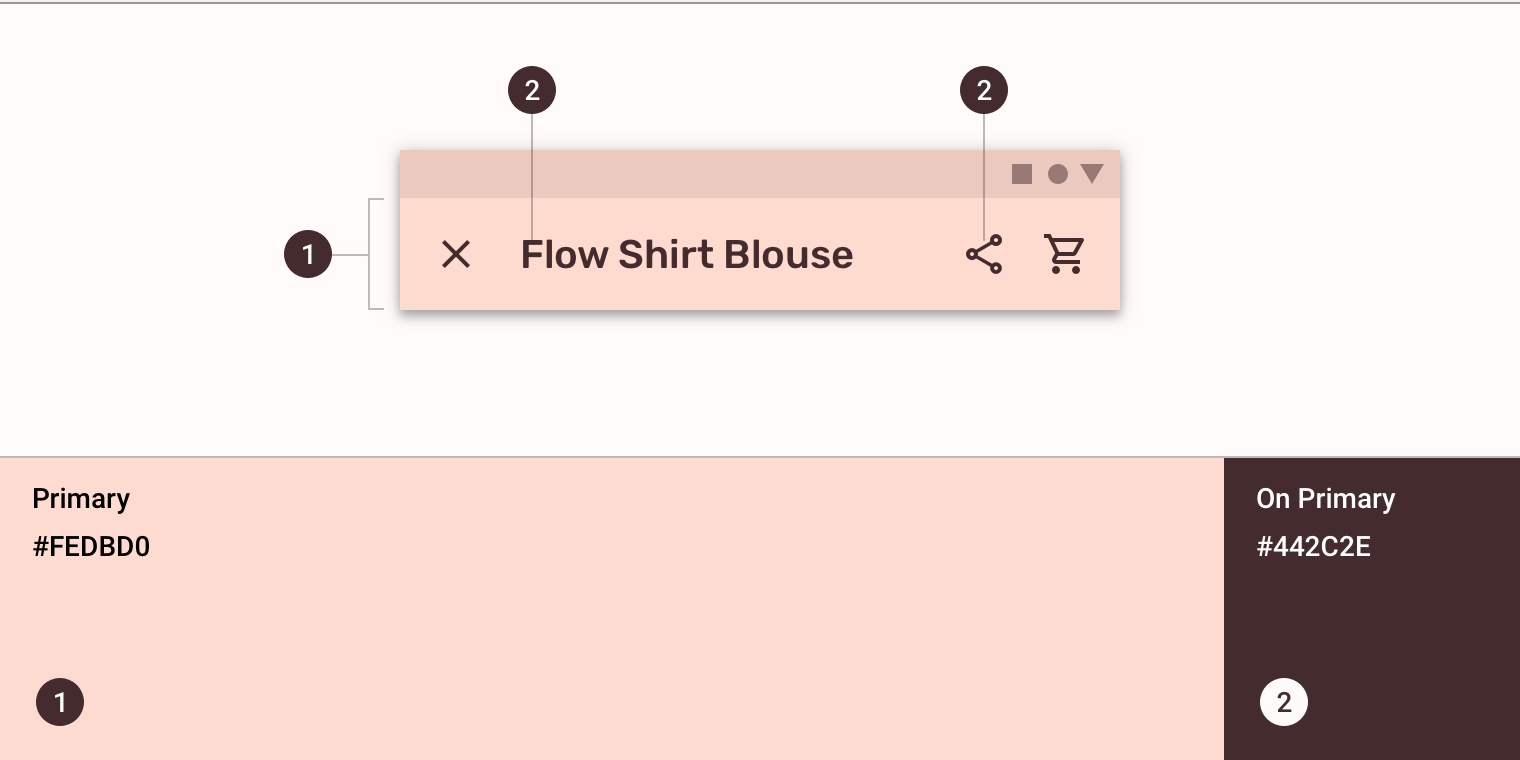

Shrine Material Theme

This retail app’s top app bar has been customized using Material Theming. Areas of customization include color and typography. Shrine is a lifestyle and fashion...

Read More

Specs

Mobile

20dp #ffffff #6200eeff R98 G0 B238 A1.00 #ffffff R255 G255 B255 Elevation 4dp All measurements are displayed in device-independent pixels (dps) 24dp #ffffff #fffff R255...

Read More

Regular top app bar

  • 360
  • 56
  • 24
  • 16
  • 16
  • 24
  • 24
  • 32
  • 16
  • 20
  • 16
  • #6200eeff

    R98 G0 B238 A1.00

  • #ffffff

    R255 G255 B255

flip
flipSpecs only available at larger screen size

All measurements are displayed in device-independent pixels (dps)

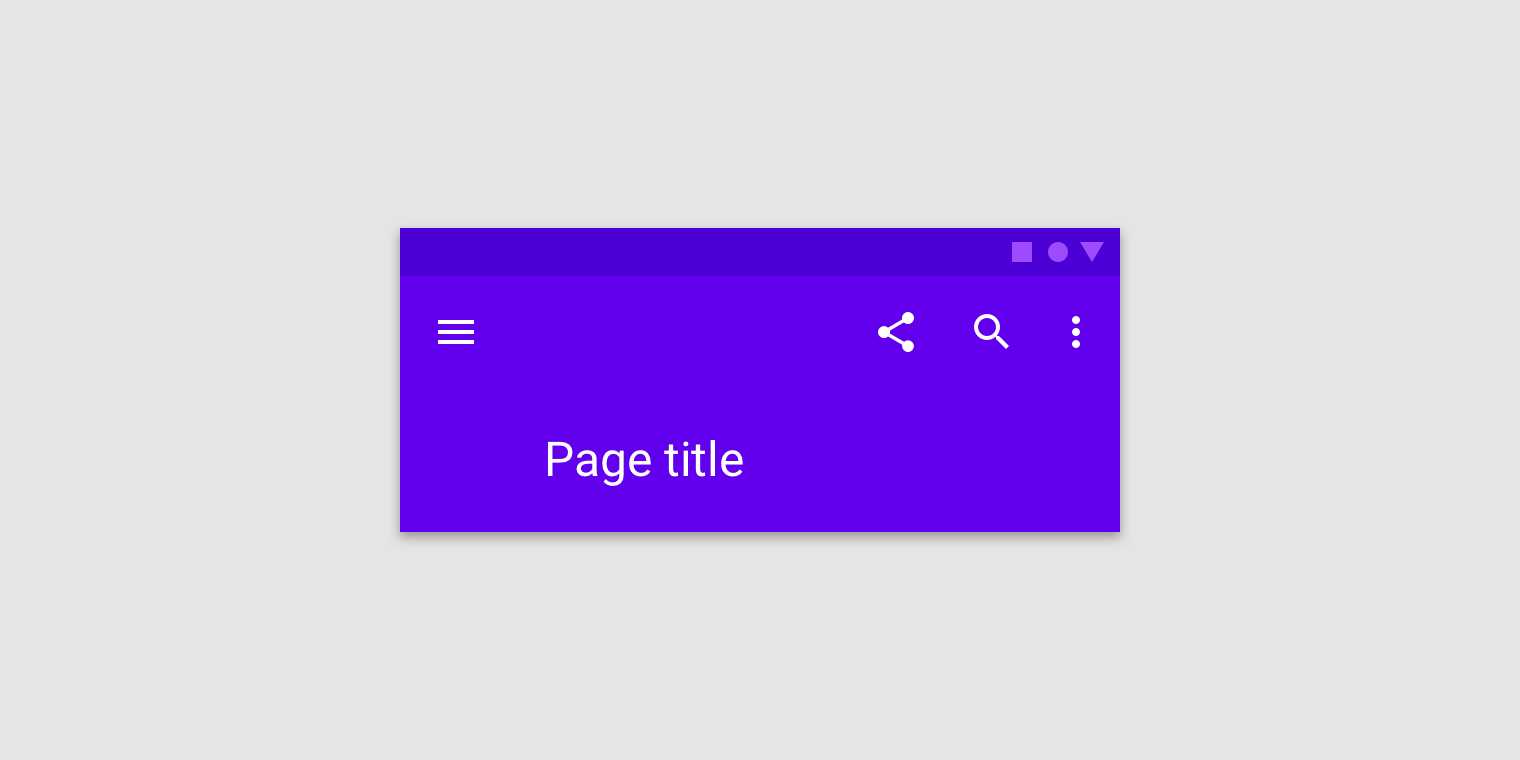

Extended top app bar

  • 24
  • 128
  • 16
  • 28
  • 24
  • 24
  • 16
  • 72
  • 360
  • 16
  • #fffff

    R255 G255 B15

  • #6200eeff

    R98 G0 B238 A1.00

flip
flipSpecs only available at larger screen size

All measurements are displayed in device-independent pixels (dps)


Implementation

Top app bar implementation support for each platform is indicated below.

Android Material Component

Status: Code Available

Flutter Material Component

Status: Code Available

Web Material Component

Status: Code Available
